Kytola Instruments’ legacy is based on long-term experience of designing and manufacturing custom-made equipment for most industrial branches. All or products are designed and precision manufactured in Muurame, Finland, using the state-of-the- art materials and testing systems. The key applications are found in pulp and paper, energy, chemical, mining, steel, water and aquaculture and food industries.

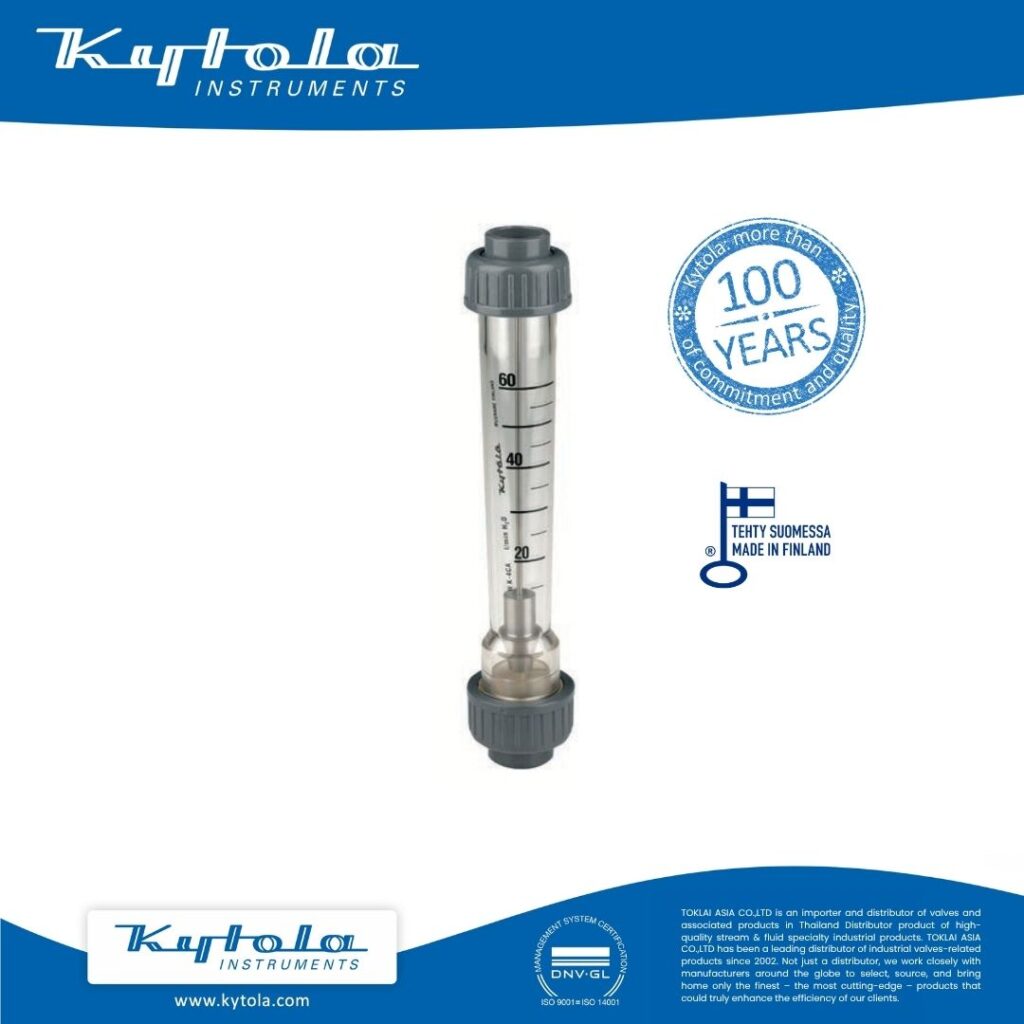

Variable area flow meter Model HK is an industrial flow meter. It has an injection molded impact resistant flow tube with threaded or socket type connections. It is a reliable instrument for measuring and monitoring liquid and gas flows. Typical applications are reverse osmosis, water treatment plants, chemical and process industries, agricultural applications and flow measurement in PVC piping.

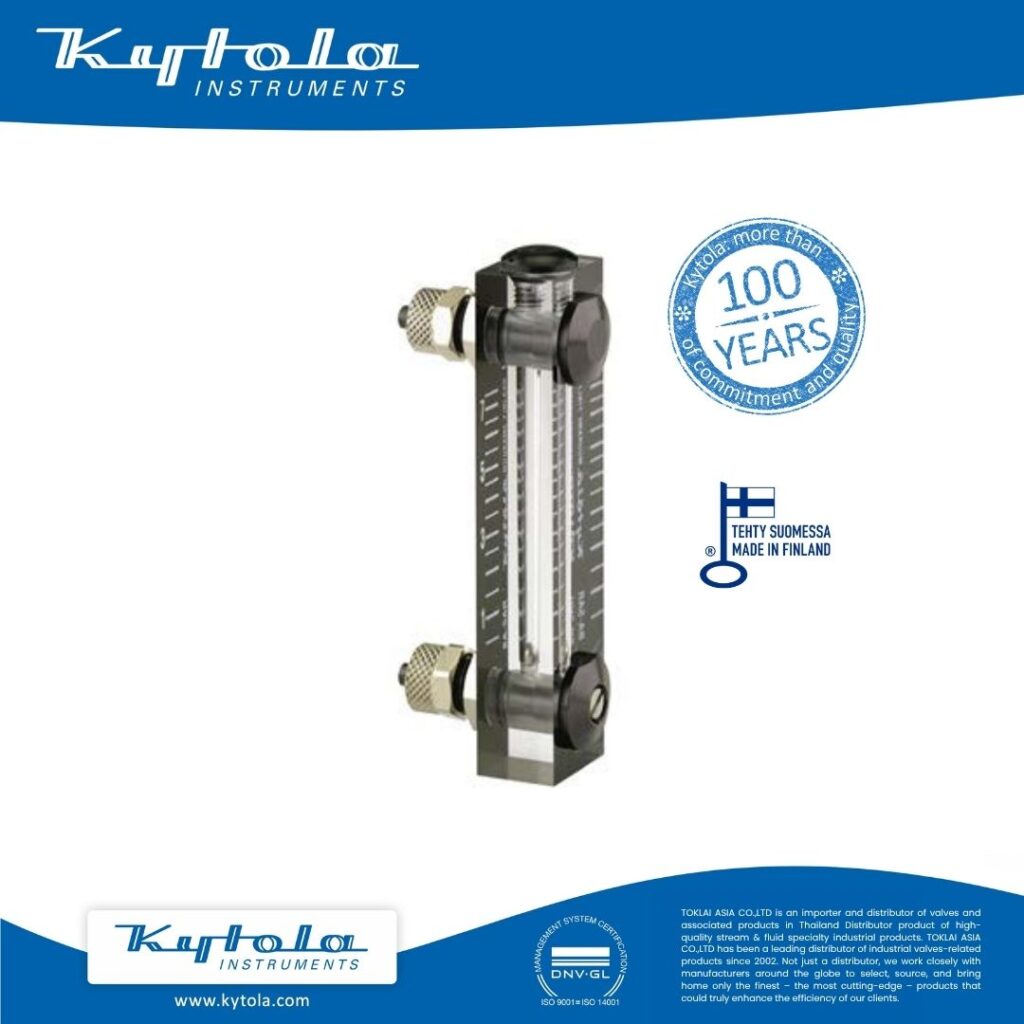

Variable area flow meter Model VE is a sturdy industrial flow meter with a heavy-duty impact resistant polymer flow tube. It has a flow adjustment valve on the outlet. It comes in a range of different options and offers a choice of end blocks: aluminium, stainless steel AISI 316 or polyamide. It is a reliable instrument for measuring and monitoring liquid and gas flows. Typical applications are sealing and cooling water, lubrication oil and gas flow measurements.
Variable area flow meter Model VE is a sturdy industrial flow meter with a heavy-duty impact resistant polymer flow tube. It has a flow adjustment valve on the outlet. It comes in a range of different options and offers a choice of end blocks: aluminium, stainless steel AISI 316 or polyamide. It is a reliable instrument for measuring and monitoring liquid and gas flows. Typical applications are sealing and cooling water, lubrication oil and gas flow measurements.

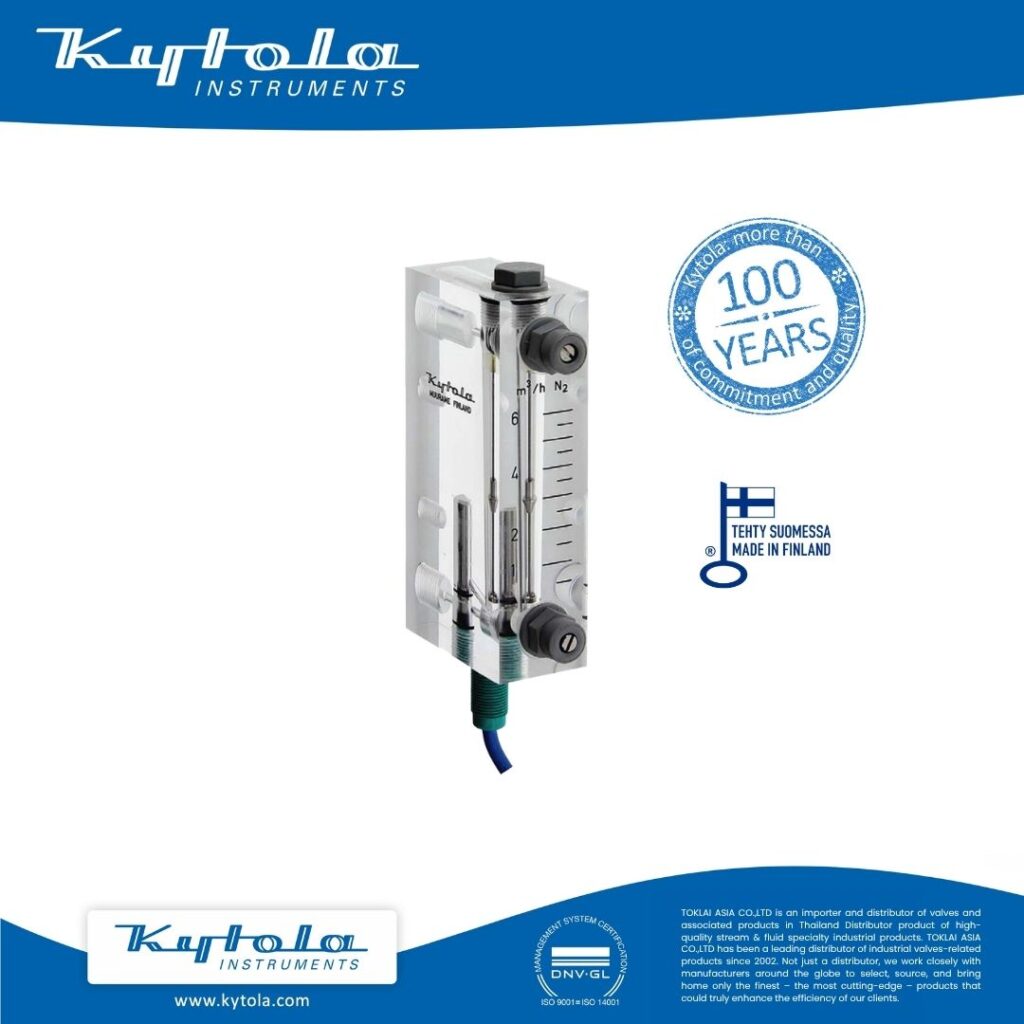

Variable area flow meter Model EA with adjustable flow alarm is designed for applications where continuous flow control is essential. The adjustable flow alarm and clear scale guarantees easy and reliable flow monitoring. Typical applications are heat treatment ovens and automatic welding lines.
Metal Tube flow meter model MP is a compact flow meter with AISI 316L stainless steel parts. It is designed to withstand high pressure, temperature and aggressive media. It is compatible for a wide range of liquids or gases. Its reliable and accurate flow measurement is based on a variable area metering principle using a free-floating float. Typical applications are chemical and petrochemical industries, power plants and general flow measurements.

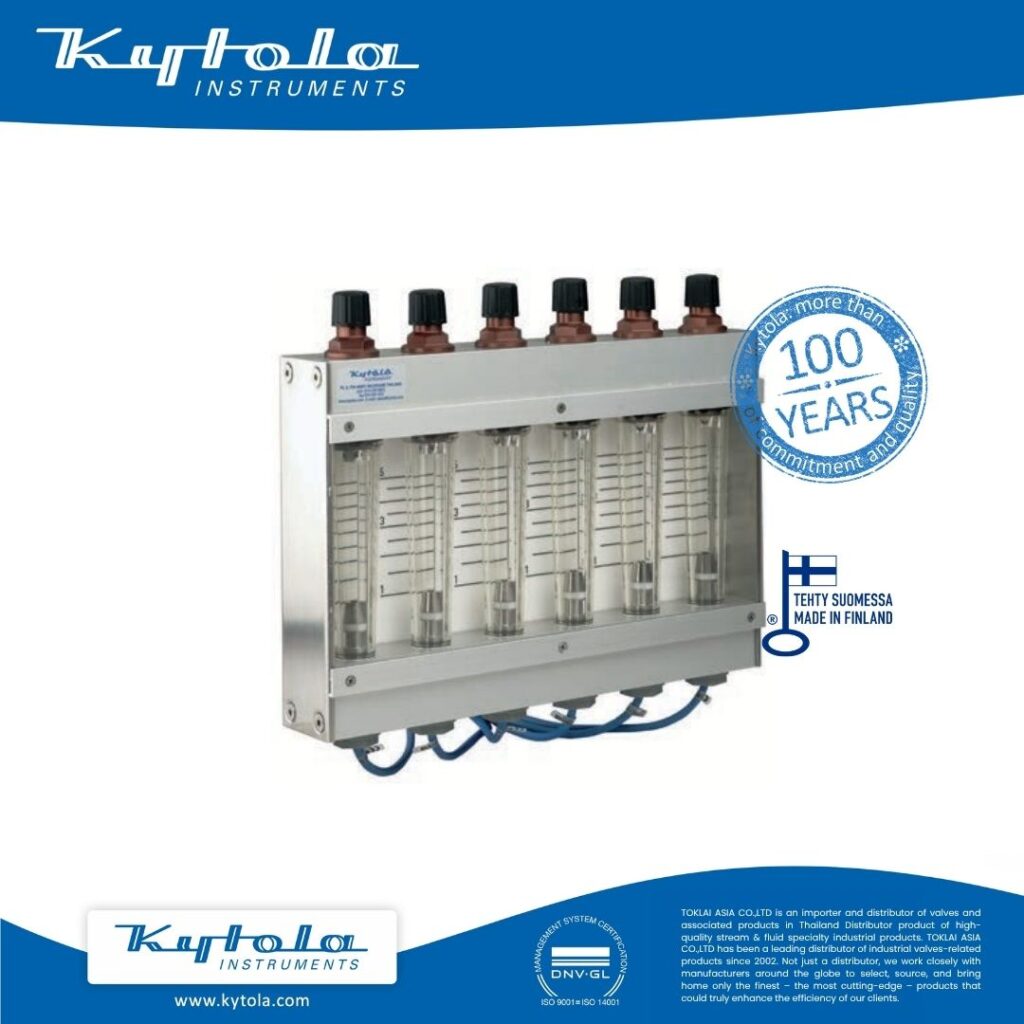

Model SLM is an accurate, efficient and reliable flow meter that is specially designed for applications where uninterrupted seal water flow is required. Proper adjustment of flow and pressure will result in significant water and energy savings.
The strong and compact design ensures maximum resistance to external impact. The SLM has been optimized to withstand contaminated water and it comes with a built-in flow tube cleaner. Its reliable and accurate flow measurement is based on a variable area metering principle using a free-floating float.
The SLM comes in many different models, which guarantees compatibility with all seal types. The SLM can also be easily equipped with an alarm output by installing an inductive proximity sensor. Typical applications are flushing and purge water applications, gland packings, single and double mechanical seals.

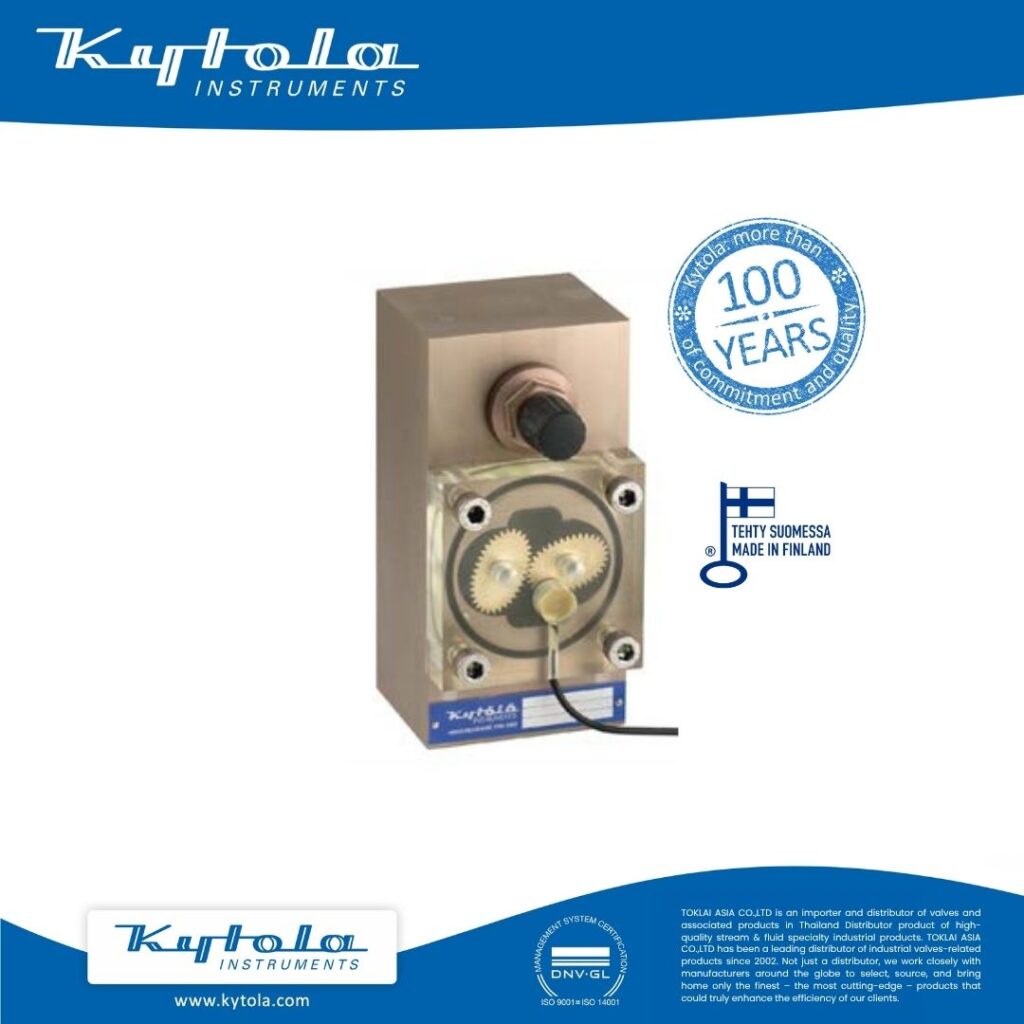

The Kytola Oval Gear Meter Model SR is designed and developed for lubrication oil measurement in demanding industrial environments. These meters are compatible with and part of our complete oil lubrication systems package Oval Flow Monitoring System.
The model SR oval gear meter is a positive displacement flow meter which always shows the correct flow rate regardless of oil temperature or viscosity changes. The flow meter consists of two elliptical gears which the flow rotates. A coil sensor or an inductive proximity sensor picks up the rotation. The pulse signal can be transferred to indicators, counters, or automation systems. The meter comes with a flow adjustment valve.
Typical applications include lubrication oil measurement, industrial oil flow monitoring, and process control.

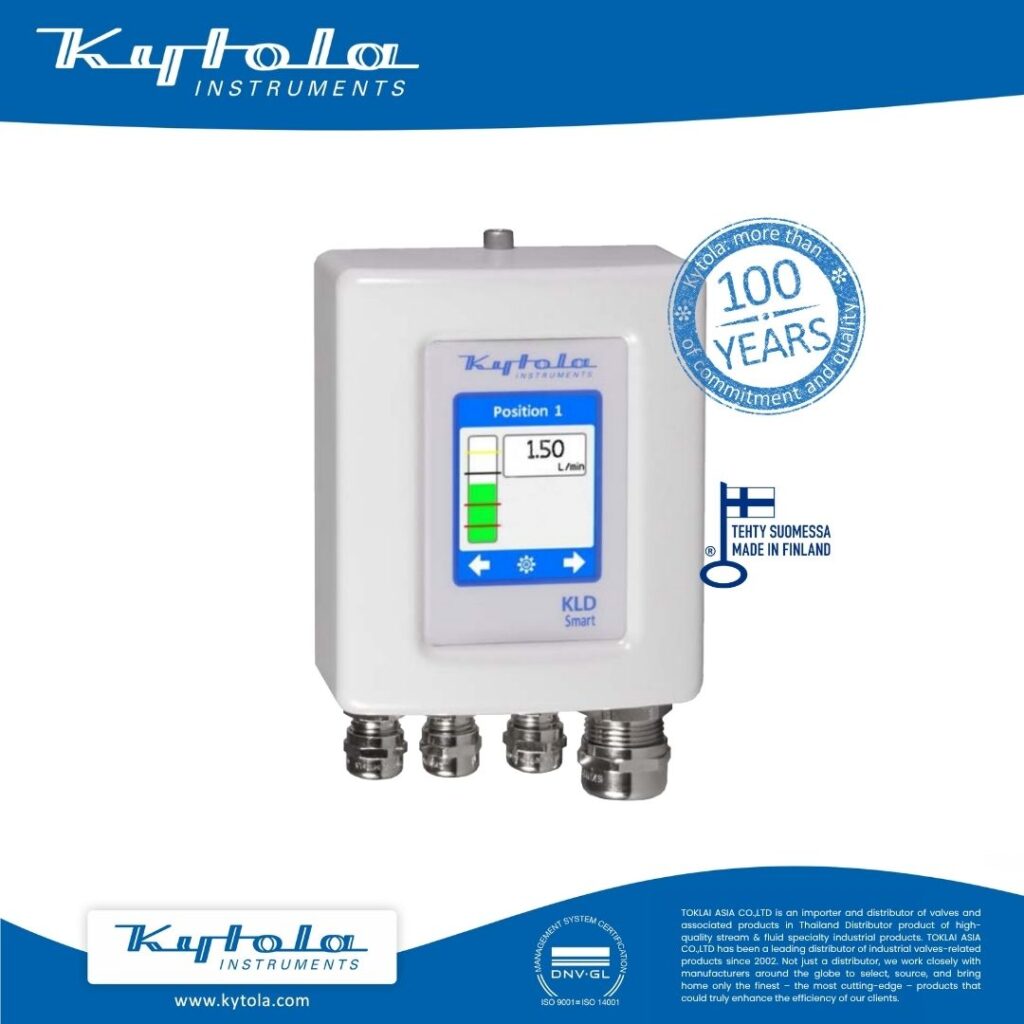

Single or multi-channel models • Stand-alone or connected to Kytola monitoring software or 3rd party system • Pulse or mA input • mA output • Alarm relay • Modbus RTU (RS-485), Modbus TCP (Ethernet) communication • IP65 • Robust steel enclosure
FEATURES
- Flow measurement
- Totalizer counter and batching
- Multiple flow units
- Multiple flow alarm levels
- Visible indication of alarm type
TYPICAL APPLICATIONS
- Lubrication oil flow monitoring
- Industrial flow monitoring Process control Batching

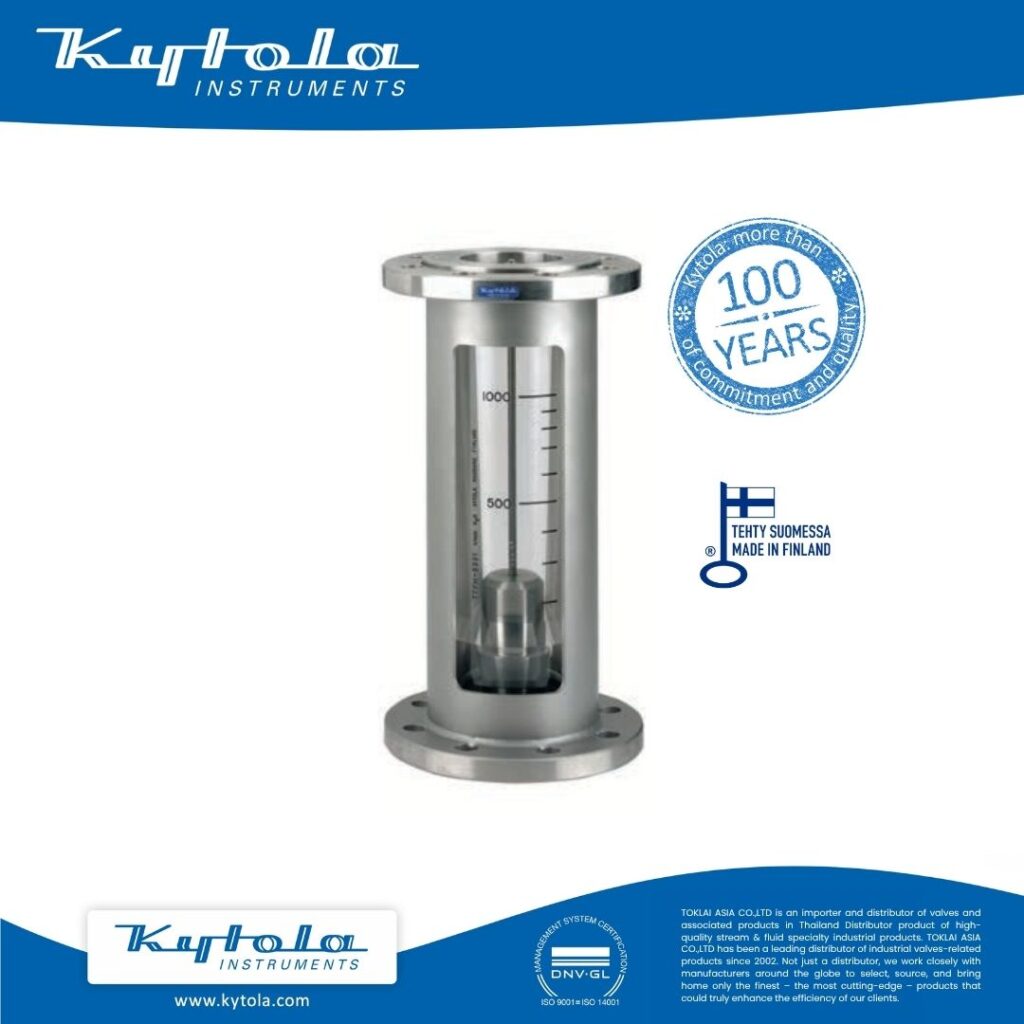

Variable area flow meter Model TT is a sturdy industrial flow meter. It has a stainless steel AISI 316 body with an acrylic flow tube. It is a reliable instrument for measuring and monitoring large water flows. Typical applications are water treatment, power plants and swimming pools.

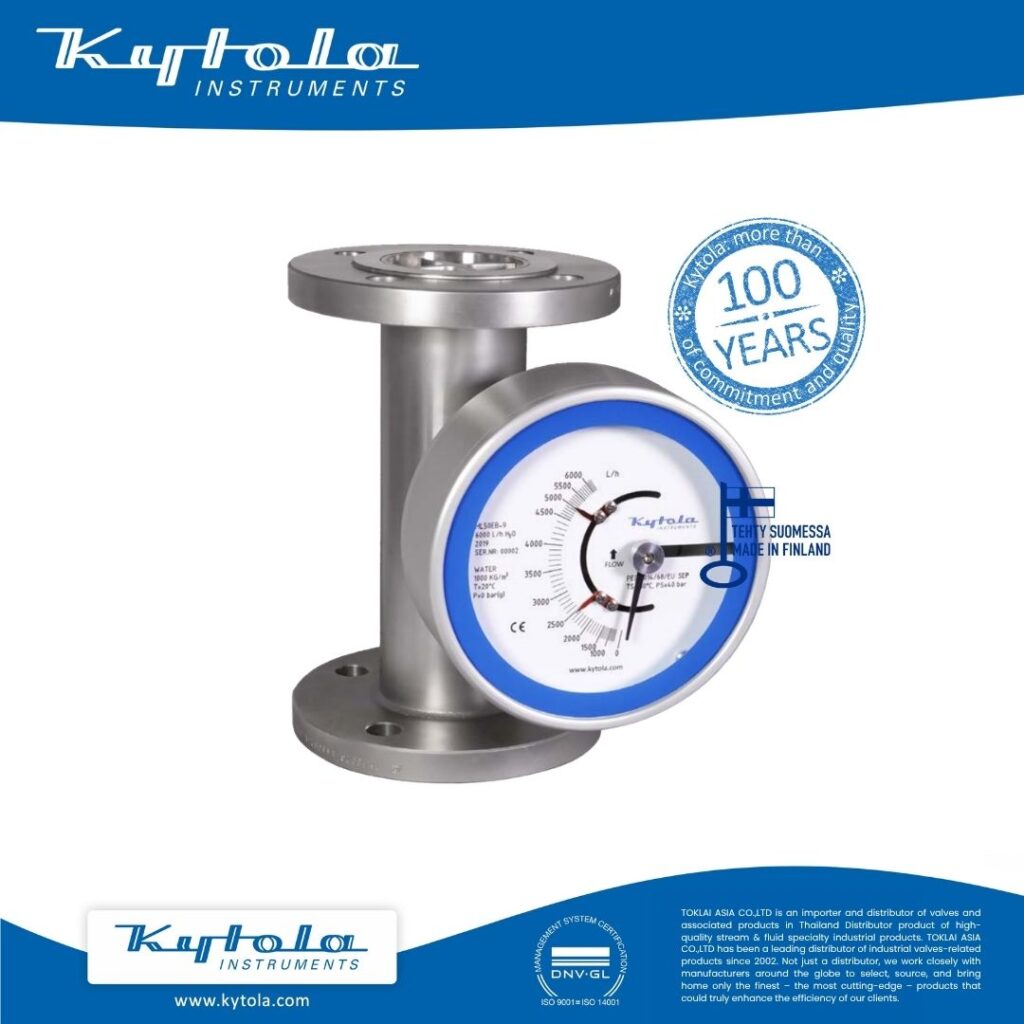

Metal Tube flow meter model ML s designed for medium and large liquid flows in rough conditions. It is compatible with a wide range of liquids. Reliable and accurate flow measurement is based on a variable area metering principle using a free-floating float.The ML meter withstands high pressure and has excellent temperature resistance. Typical applications are found in chemical and petrochemical industries, power plants and general flow measurement.

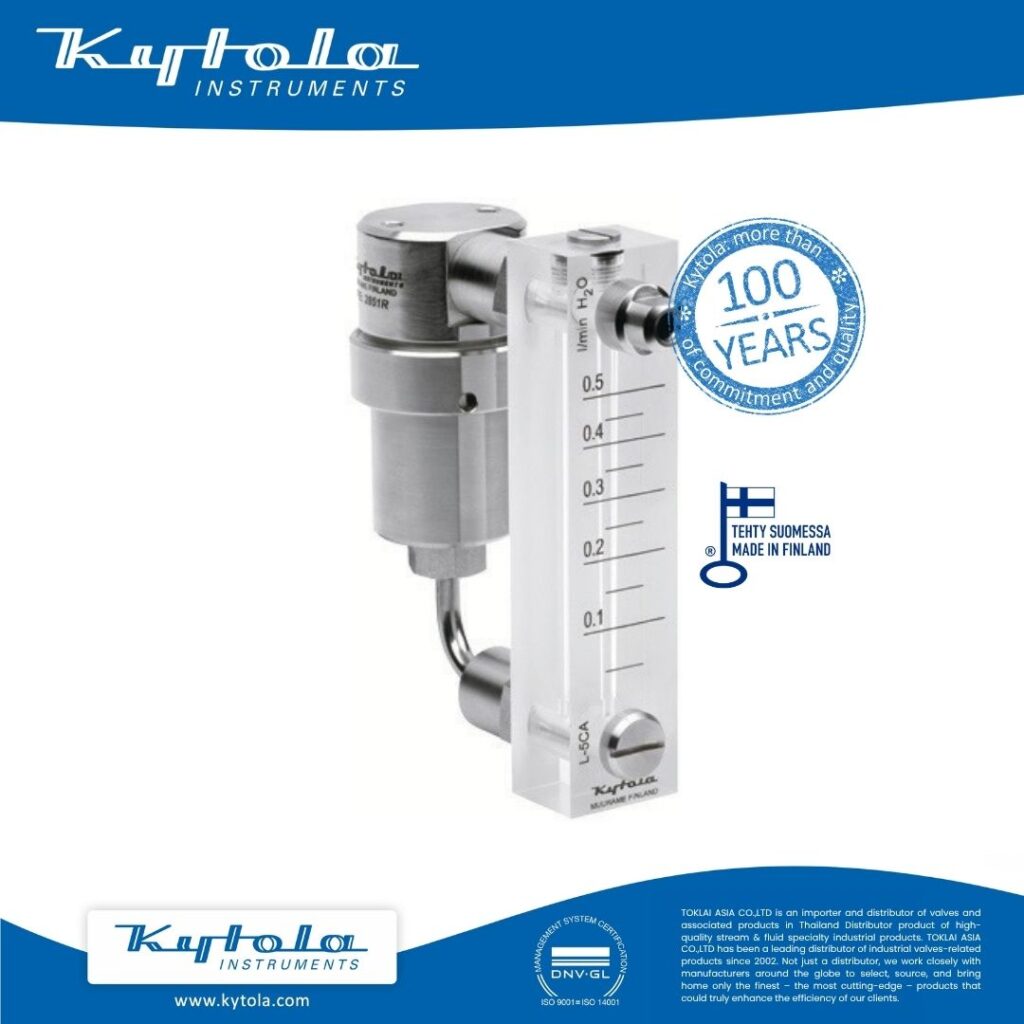

Model 2851 constant flow regulator has an AISI 316 stainless steel body and a two-piece construction for easy maintenance. It is a sturdy, industrial constant flow regulator and is designed to provide constant flow of liquids or gases regardless of pressure variations.
It is intended for low liquid flows in applications where supply or backpressure varies and for gas flows in applications where backpressure varies.
The regulator is a membrane type differential pressure controller, which is usually supplied with Model L variable area flow meter. Typical applications are control of seal waters, control of flush waters, water purging and air purging.
