M-Series

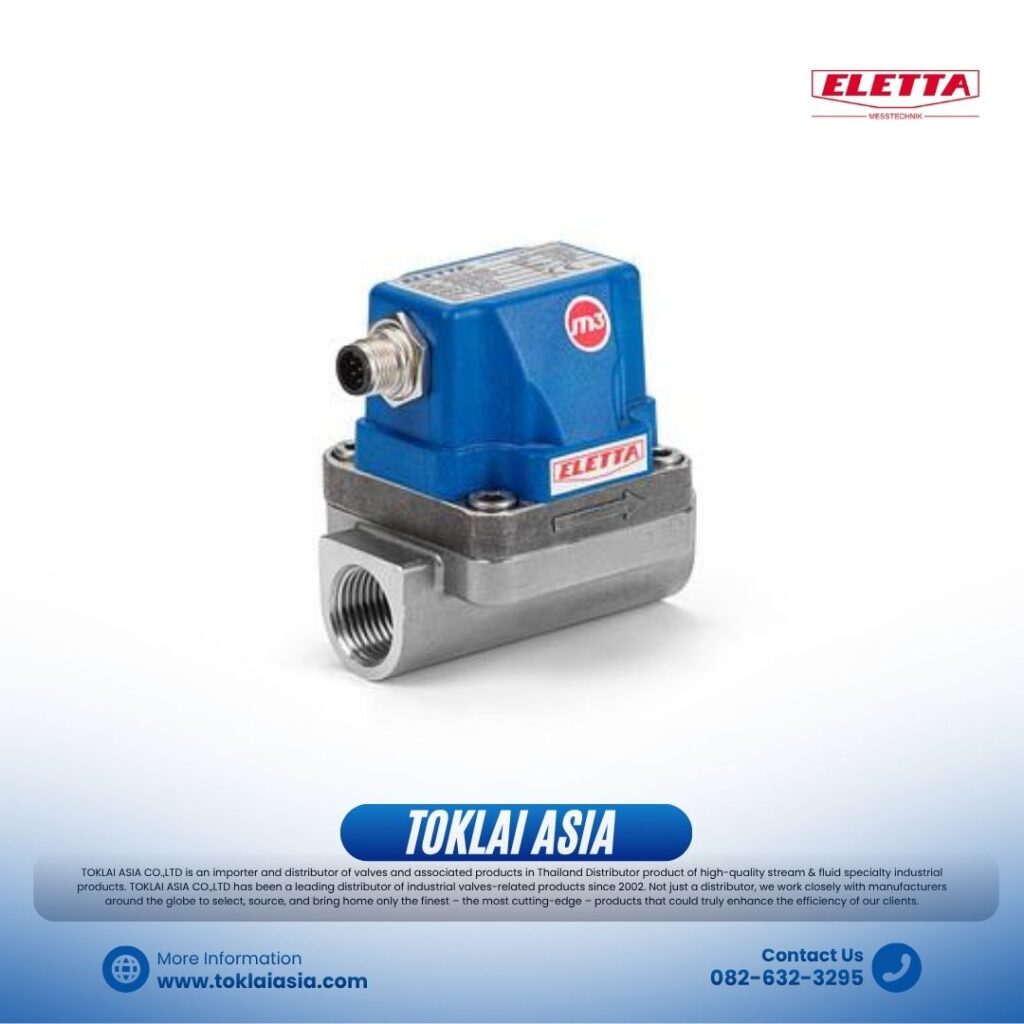

The Flowmeter in M-series M3 has two independent piezoresistive absolute pressure sensors that give you a compact flowmeter that can be used for three different functions: Gas flow measurement, Liquid flow measurement and Differential pressure measurement. M3 can measure most occur-ring gases and compensates for changes in pressure and temperature (mass flow measurement). Programmable with Eletta’s flowcenter. 4-20 mA and Modbus output.
The M3M differential pressure flow transmitter is certified for marine applications
according to DNV rules for classification – Ships, offshore units, and high-speed and light
craft. It has received type approval from DNV for installation on vessels classed by DNV.

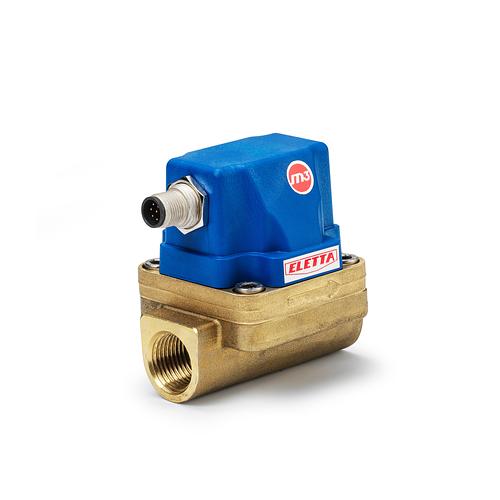

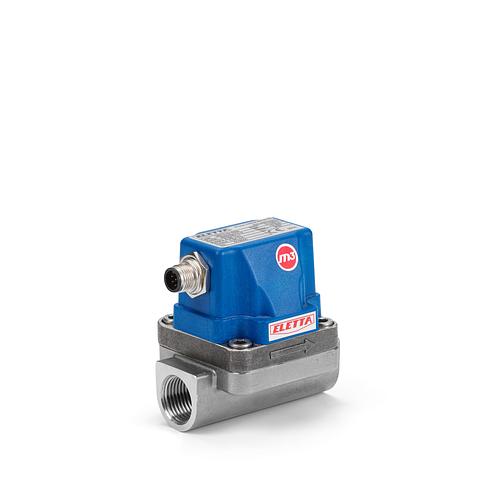

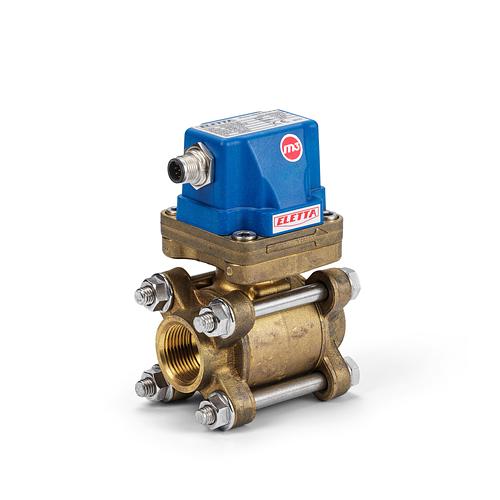

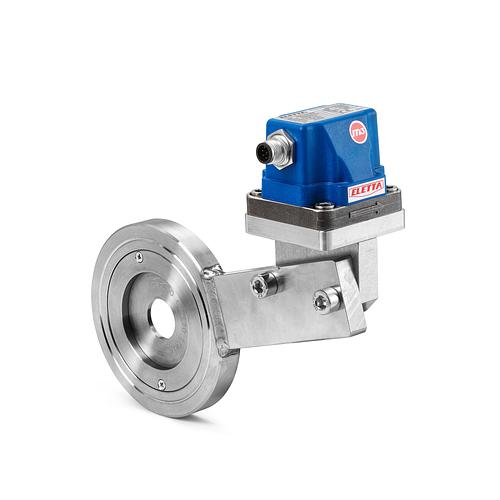

• Pipe section: brass, powder coated steel, stainless steel (other material on request)

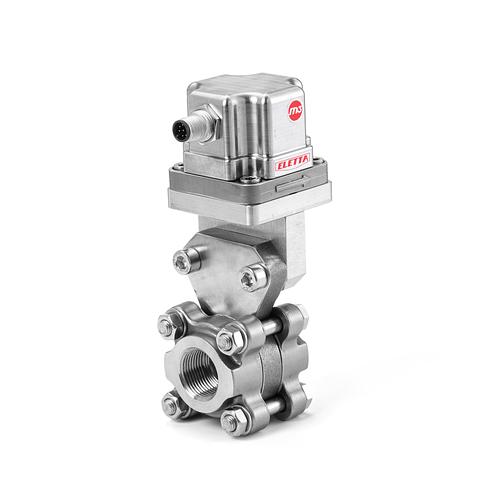

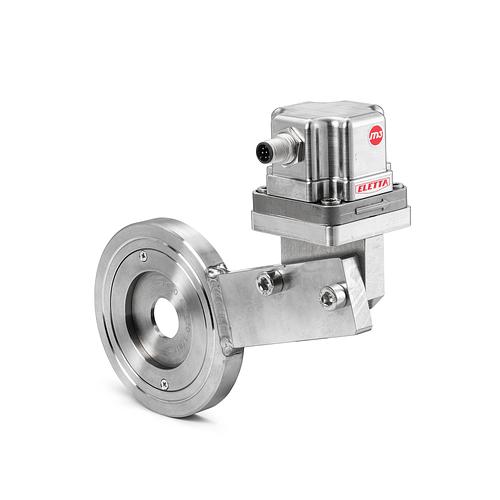

• Housing: plastic, stainless steel – Marine certified
• Measuring range: 1:10 turndown
• IP class: IP67
• Pressure classes: 10, 25, 50 bar
• Temperature spec: dependent on configuration. Contact Eletta
• Micro switch: Two piezoresistive absolute pressure sensors
• Pipe sizes: DN6 – DN500
• Optional: loop-powered OLED 128*32 pixels display
• Other: NOTE; Flanged pipes type FA are manufactured according to DIN PN16 / ANSI 150 lbs, applies to all pressure classes.
