PR1

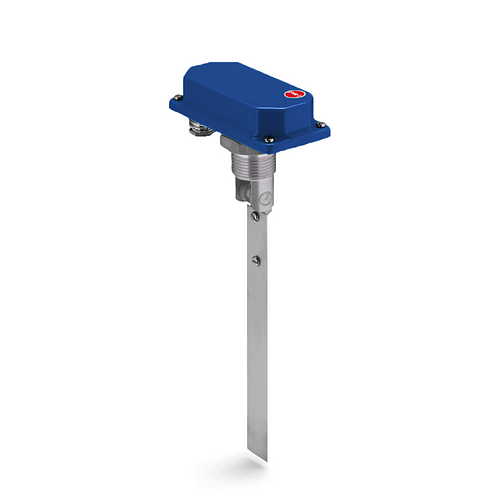

Paddle Switch PR1 is using the liquid flow to activate the spring supported paddle and the micro-switch to give an alarm if the flow stops or starts. The installation is simple as you can cut the paddle to the desired length on site according to the actual pipe size. The paddle aligns fully with the flow and creates a very small pressure drop. The function works only in one flow direction.
Paddle Switch PR1M is certified for marine applications according to DNV rules for classification – Ships, offshore units, and high-speed and light craft.

• Switch rating: 250 VAC 16 A
• Pipe sizes: DN50 – 250
• Process connection: 25 mm thread (1¨ BSP or NPT) (through pipe wall)
• IP class: IP 65
• Paddel Length: 250 mm – can be cut to the desired length
• Micro switch: mechanical SPDT
• Pipe section: brass, stainless steel
• Pressure classes: PN 25 bar
• Temperature spec: dependent on configuration. Contact Eletta
• Housing:aluminum, stainless steel – Marine certified
