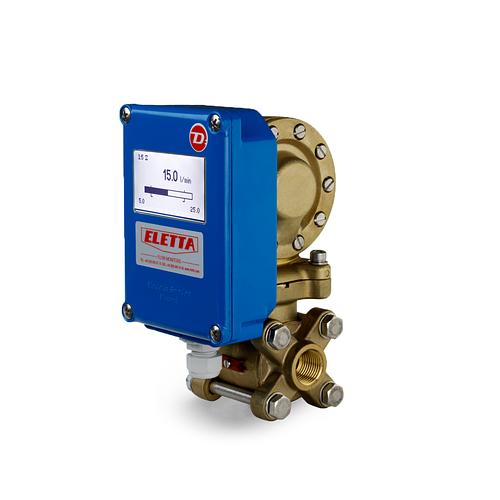

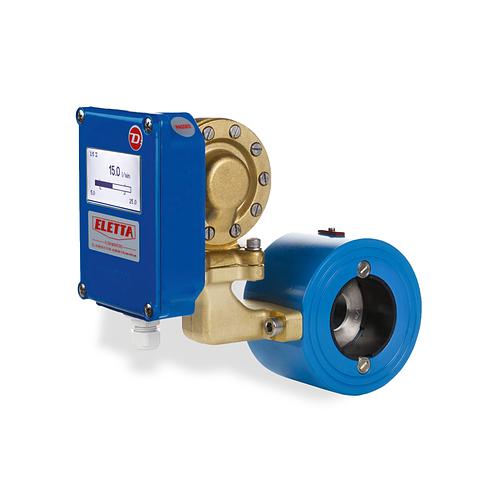

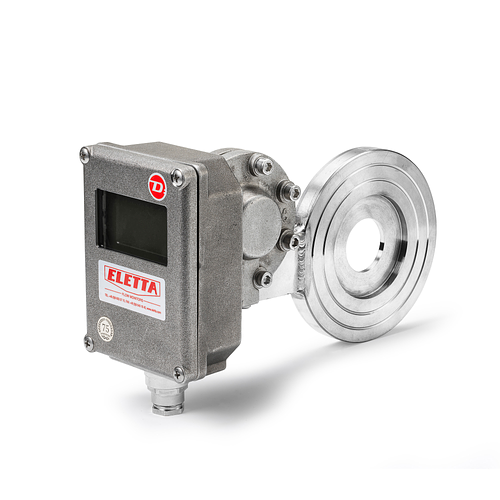

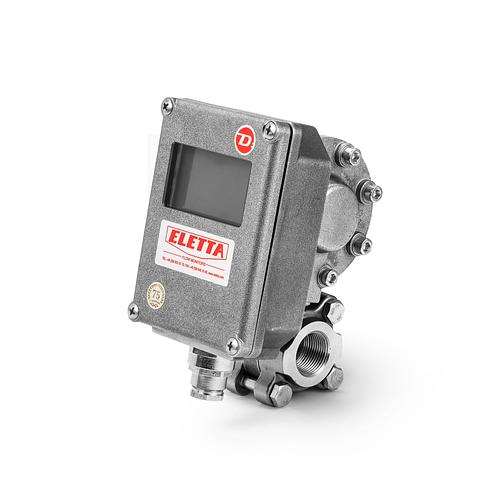

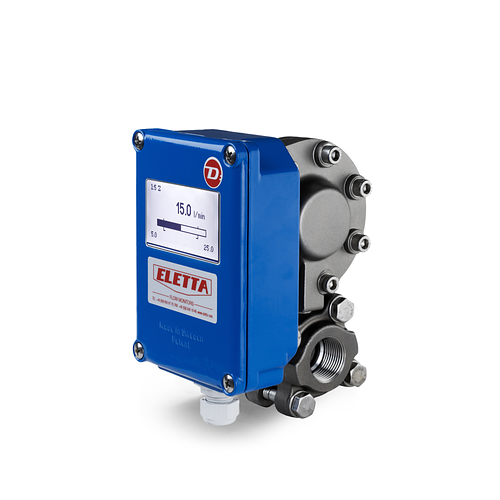

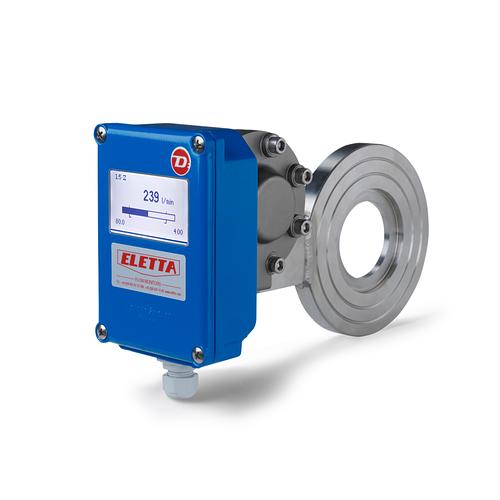

D-Series
The Flow Monitor in D-series has a backlit digital display that can be rotated electronically. It has a 4-20 mA, HART, pulse or frequency output, the accuracy is ± 2% F.S. (full scale) and it is not affected by static pressure. It can be installed both vertically and horizontally and offers zero-settable volume summation of the flow within the measuring range. You can simulate a flow before the meter is in operation.
- Relays: two adjustable alarm points
- Relays rating: 50VAC/DC max , 1 mA, 5 VDC min, 30 W max
- Pipe section: brass, powder coated steel, stainless steel (other material on request)
- Housing: aluminum, stainless steel
- Measuring range: 1:2 or 1:5 turndown
- IP class: IP65
- Temperature spec: dependent on configuration. Contact Eletta
- Pipe sizes: DN6 – DN500
.
The Eletta D-Series combines continuous-flow indication, alarm functionality, and digital communication in a single robust industrial instrument.
It is an excellent solution for customers looking to upgrade from a traditional mechanical flow switch while maintaining the proven reliability and simplicity of Eletta’s differential-pressure technology.
Key features include:
• Digital backlit graphic display
• Two independently adjustable alarm relay outputs
• 4–20 mA output
• HART communication
• Pulse or frequency output for external counting and totalizing
• Built-in flow totalizer
• Electronically rotatable display for flexible installation
• D5 turndown ratio of 1:5
• Suitable for water, lubricating oil, and gases
The D-Series provides more than a simple flow alarm. It allows operators to monitor the actual flow rate, set two independent alarm points, transmit the measurement to a control system, and track accumulated flow.
With its robust construction and flexible connection options, the Eletta D-Series is well suited for applications such as:
• Cooling-water monitoring
• Lubrication-oil systems
• Compressed air and industrial gases
• Pump and equipment protection
• General industrial flow monitoring
.
.
.
