Aluminum and Stainless Steel Pinch Valves with near endless connection options. From 3/8” – 4” diameters [10 mm – 100 mm].

The VMC Series Pinch Valve is the most configurable pinch valve worldwide. With a range of body materials, sleeve materials, and connections to meet almost any industrial or sanitary valve application.

Advantages:

• VMC Pinch Valves are modular in construction and have a sealed shutoff and full bore opening when opened. The sleeves do not impede product flow and come in a range of sleeve options for abrasive materials, strong acids and bases, sanitary applications and even high temperature applications.
• Various Valve Connections: ANSI Flanged, DIN Flanged, Sanitary Tri-Clamp, NPT threaded or BSPP, Weld-on ends and Threaded Spigot.
• Pinch valve sleeves (liners) can be easily replaced. See step-by-step instructions.

VMC Pinch Valves are constructed from 3 body material options:

• Plastic FDA Approved White or Industrial Black or Conductive for XP
• Powder Coated Aluminum Industrial Valve Applications
• Electropolished Stainless Steel for Sanitary and Corrosive Valve Applications

Sleeve Options for VF Valves:

VMC Series Pinch Valve (NEW! Modular)

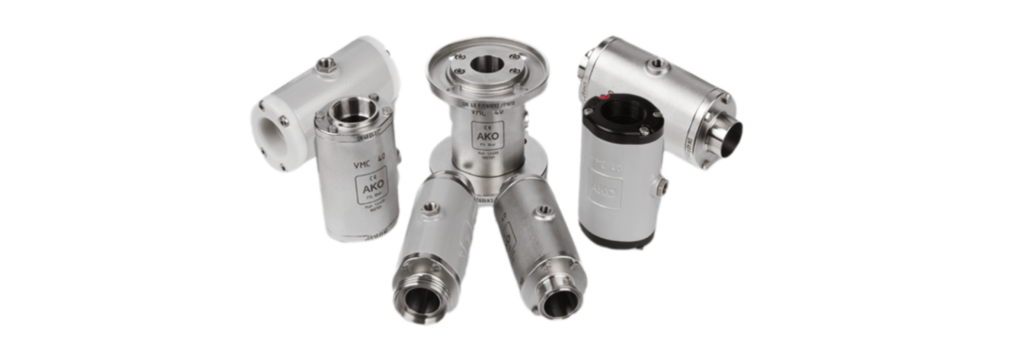

The VMC Series boasts a one of a kind flexible and modular system. Available in various body material options coupled with near endless connection options ranging from flange, internal thread, tri-clamp, threaded spigot and weld-on ends.

Air operated Pinch Valves with Flange Connection – VMC Series

The air operated pinch valves of the VMC series are available in the nominal diameters of DN25 to DN150. They are designed with a flange connection complying with DIN EN 1092 (PN10/16) / ANSI B 16.5-150lbs (DN40-150) as standard. VMC series air operated pinch valves can also be provided in compliance with DIN 11853-2 and DIN 11864-2 Form A.

.

.

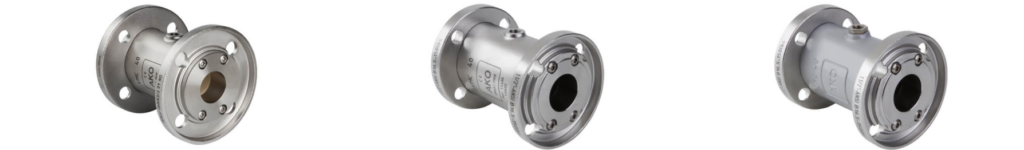

Air Pinch Valve, VMC Series, Aluminum body with stainless steel flange, ANSI B 16.5-150lbs

Air operated pinch valve from the AKO VMC series. Pinch valve housing in aluminium, flange in accordance with ANSI B 16.5-150lbs in stainless steel 1.4404. Lightest food industry design, 40% energy savings due to an elliptical control chamber!

The general description of air operated pinch valves covers the operation and the benefits of air pinch valves.

Materials of AKO air operated Pinch Valves VMC series

A selection of 12 different elastomer grades for the sleeve (natural rubber, food quality rubber, high temperature rubber, CR, EPDM, EPDM food quality, viton, silicone, nitrile, nitrile food quality, butyl and CSM) ensures that the VMC series air operated pinch valves have a very wide and practically unrestricted field of application.

The body is available as follows:

• Powder-coated aluminium body
• Electro-polished stainless steel body

The standard material for the flange is

• stainless steel 1.4404 electro-polished, other types of stainless steel are available on request.
• aluminium with steel bushing for flanges according ANSI (DN40-100)

Maximal operating pressures Pinch Valves VMC series

DN25-DN150: 6 bar

.

Industrial sectors, possible applications:

.

Valve Configuration

• DN10 to DN100 bodies available in stainless steel 1.4408.
• DN20 to DN100 bodies available in aluminium AISi10Mg.
• DN10 to DN15 bodies available in plastic POM..

Valve End Covers Material Configuration

• Stainless steel 1.4408 (all body sizes).
• Plastic POM (body sizes from DN20 – DN50).
• Aluminium AISi1Mg (body sizes from DN40 – DN100).

.

.
