TIVG-Series
The Flow Monitor TIVG is a protective device which controls that the given flow of the liquid in a pipe is at a correct rate and controls any deviations with pre-set microswitches.

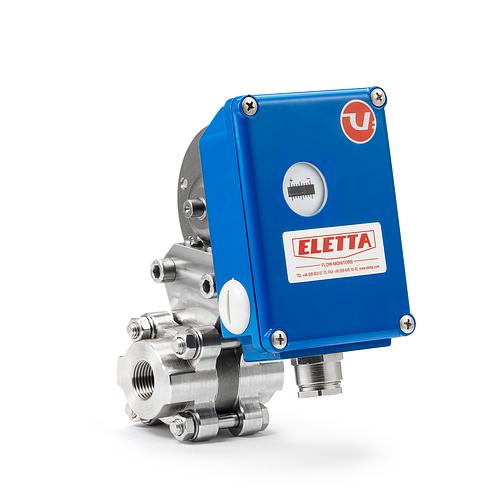

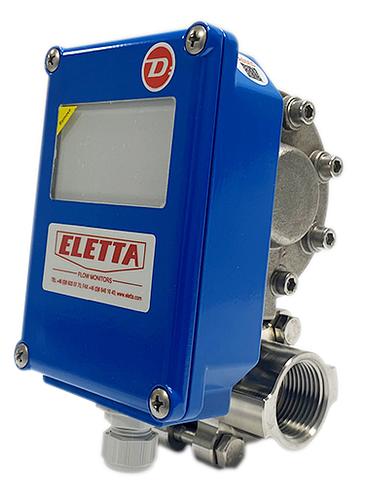

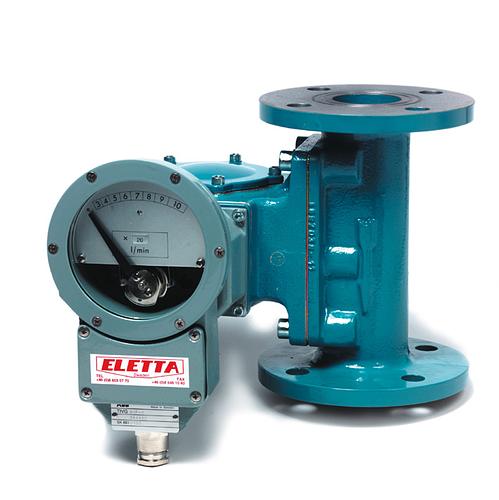

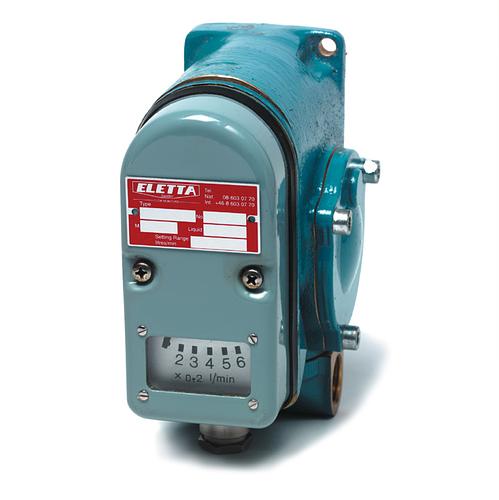

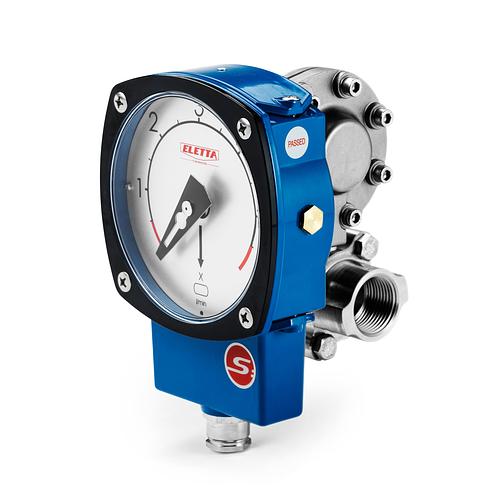

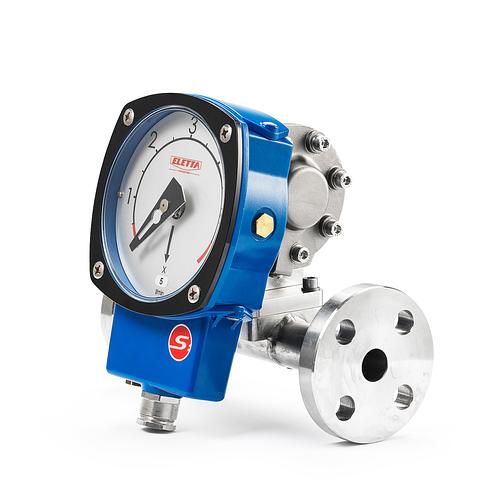

TIVG-S , TIVG-V, TIVG-D is replacing the old TIVG-F and -R Flow Monitor with updated materials and functions. The upgrade gives a higher quality monitor allowing higher flow rates and wider flow turndown.
The monitor is insensitive to surrounding magnetic fields and it combines the long-standing proven mechanical function with outstanding reliability known for Eletta.
- Pipe section: brass, powder coated steel, stainless steel (other material on request)
- Pipe sizes: DN15 – 400 DIN flange
- Housing: aluminum, stainless steel
- Measuring range:1:5
- IP class: IP65 (NEMA4)
- Temperature spec: depending on configuration. Contact Eletta
- Micro switch: Missing
.
.
.
