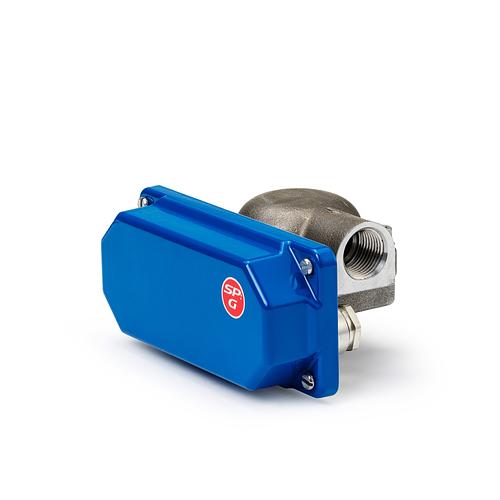

SP-G

Flow Switch SP-G is designed to fit small flow and line sizes. It works on the principle of variable flow area where the alarm switch point can be set at a very low flow and still the switch is capable of handling large flows without creating a large pressure drop. You can install it horizontal or ver-tically. Another feature is that the outlet can be rotated 90º or 180º with respect to the inlet. This gives you good alternatives in places where space is very limited.

• Switch rating: max 10 A @ 250 VAC
• Micro switch: mechanical SPDT
• Pipe section: stainless steel
• Pipe sizes: DN15 – DN20
• Housing: aluminum
• Flow range: Max flow limited by pump capacity and acceptable pressure drop
• Min-max swich point: 1,5 l/min – 30 l/min
• IP class: IP43
• Pressure classes: PN 25
• Temperature spec: dependent on configuration. Contact Eletta
• Options:Atex certified
