V-Series V2-V25
The Flow Monitor in V-series V2-V25 is a very robust and reliable flow monitor for harsh and dusty industrial environment. The compact design, appr. 60 % smaller that V1 and V15 series and allows installation in places with very limited space. The Monitor is insensitive to surrounding magnetic fields and it combines the long standing proven mechanical function with outstanding reliability.
- Micro switch: two adjustable SPDT micro switches
- Switch rating: AC Voltage: 4 A @ 250 VAC & Rating , DC Voltage: 5 A resistive, 2,5 A inductive @ 28 Vdc

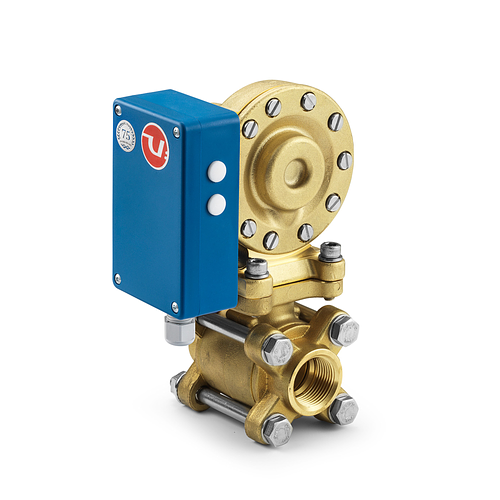

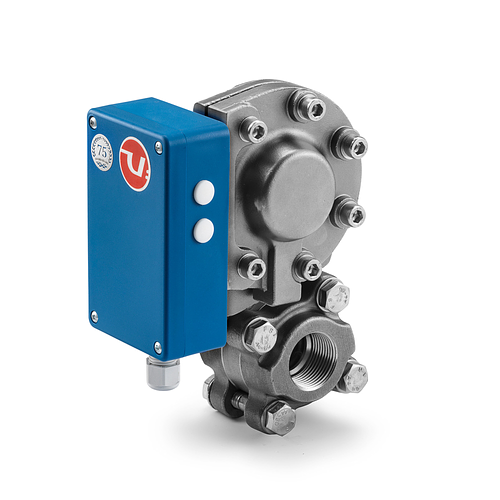

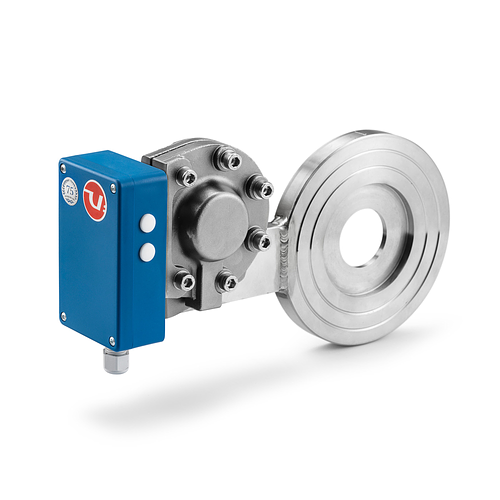

- Pipe section: brass, powder-coated steel, stainless steel (other material on request)
- Pipe sizes: DN6 – DN500
- Housing: plastic
- Measuring range: 1:2 or 1:5
- IP class: IP43
- Temperature spec: dependent on configuration. Contact Eletta
.
.
.
